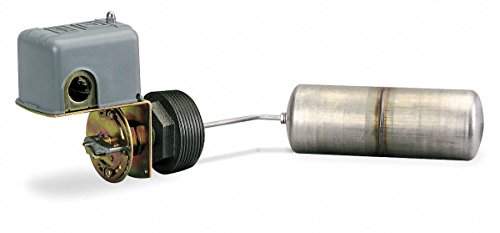

Square D Tank Liquid Level Switch - Close On Rise, Stainless Steel, 2-1/2" MNPT - Ideal for Water Tanks, Oil Storage, and Industrial Liquid Monitoring Systems

Product Description

This float switch is designed to control small motor loads directly. It helps to provide a simple, positive means of mechanically altering two pumps or motors. It includes an external pointer, nameplate, rod, and float. Class 9036 switches are single-lever operated. Item: Tank Liquid Level Switch Switch Function: Close On Rise Mounting: Side Float Position: Left Float Rod Angle: 90 Degrees Float Travel: 4-1/2" Tank Connection Size: 2-1/2" MNPT NEMA Rating: 1 Contact Form: DPST Operating Temp. Range: -22 Degrees to 220 Degrees F Max. Pressure: 50 psi Overall Length: 16.06" Float Material: Stainless Steel Float Length: 7.13" Float Dia.: 2.58" Stem Material: Stainless Steel Stem Length: 4.37" Height: 5.98" Width: 2.88" Max. Current: 600A Max. Voltage: 600 HP @ 1 Phase - 120V: 2 HP @ 1 Phase - 240V: 3 HP @ 3 Phase - 240V: 5 Body Material: Steel Conduit Size: 3-1/2" Electrical Connections: Screw Clamp Includes: Rod and Float
